Product Description:

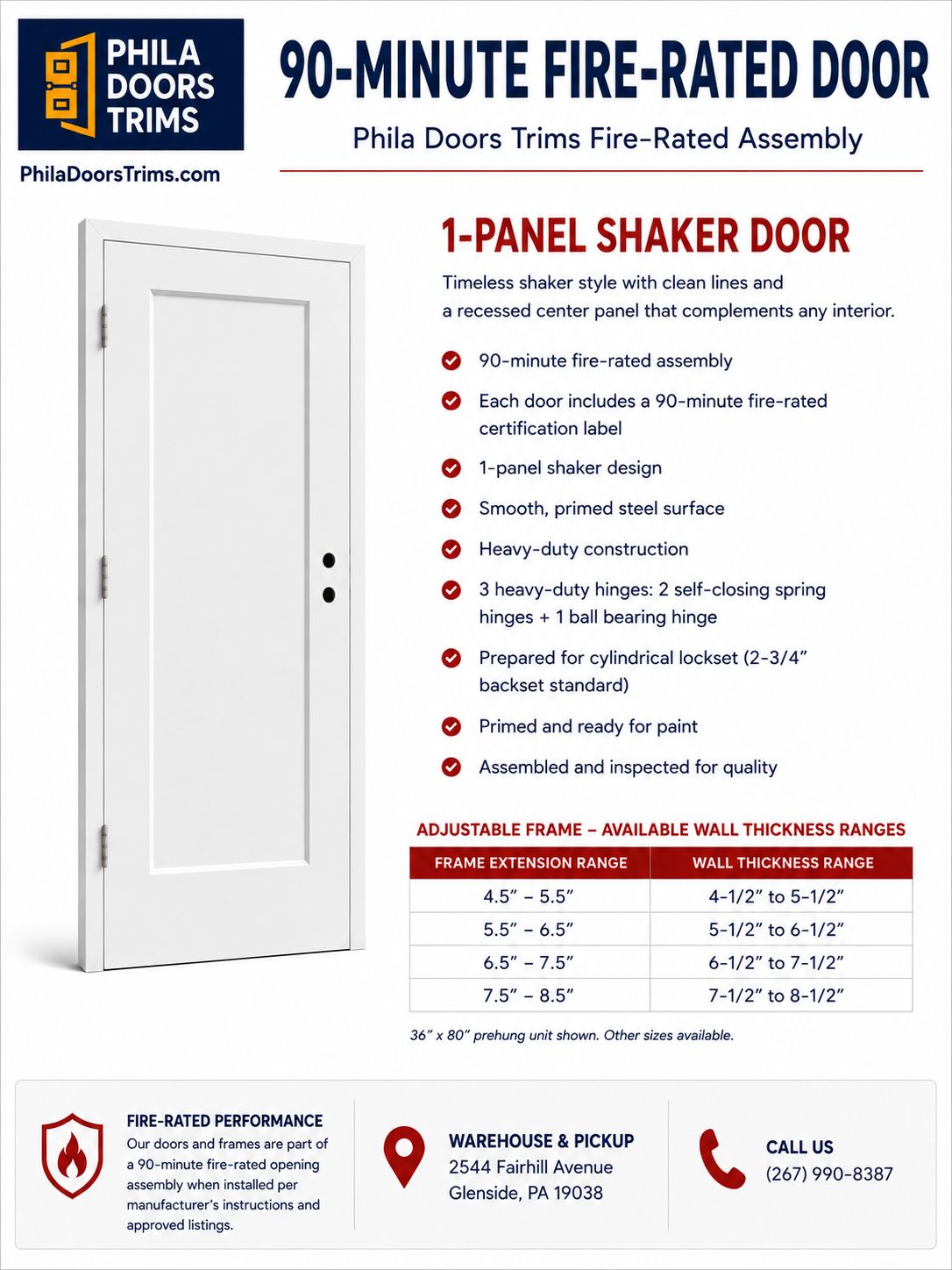

A modern one-panel Shaker steel door supplied as a complete prehung fire-rated assembly. The large recessed center panel provides the clean, simple appearance of Shaker-style doors while offering a coordinated option for projects requiring a 90-minute fire-rated opening.
Each door is assembled and inspected by Phila Doors Trims and includes an adjustable steel frame, heavy-duty hinge package and cylindrical lock preparation.
Product Specifications:
- Fire Rating: 90-minute fire-rated assembly
- Certification: Each door includes a 90-minute fire-rating certification label
- Door Style: 1-panel Shaker
- Door Material: Steel
- Surface: Smooth, primed steel
- Finish: Primed and ready for paint
- Available Door Sizes: 32” × 80”, 34” × 80”, 36” × 80”
- Configuration: Prehung door assembly
- Hinges: 3 heavy-duty hinges: 2 self-closing spring hinges + 1 ball bearing hinge
- Lock Preparation: Double bore for cylindrical lockset
- Backset: 2-3/4”
- Frame: Adjustable steel frame
- Assembly: Assembled and inspected for quality by Phila Doors Trims

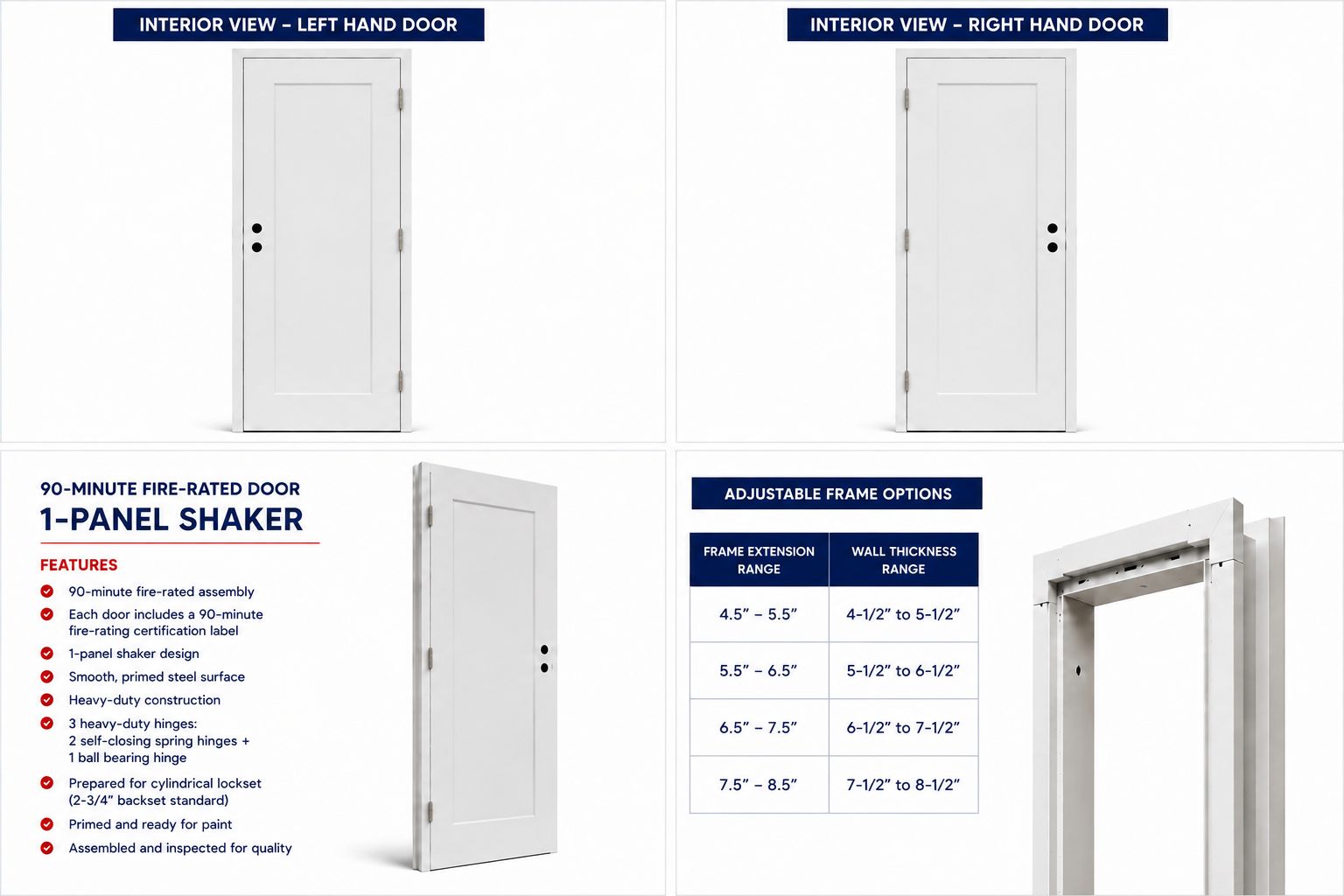

Adjustable Frame Options:
Frame / Wall Thickness Range
4-1/2” – 5-1/2”
5-1/2” – 6-1/2”
6-1/2” – 7-1/2”
7-1/2” – 8-1/2”
